4 / 3 DD WRT Hard Metal Slurry Pump with Wear Reduction Impeller for Mill Discharge
Introduction:
Slurry pumps are designed and engineered for the most rugged and demanding installations. During years, our pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.
SH-75DD WRT (4/3DD- WRT) is a very popular model among smaller slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.
Specifications:
| Model | SH/75DD-WRT |
| Outlet | 3-inch |
| Capacity | 100-250m3/h |
| TDH | 8-80m |
| Rated Motor Power | 110Kw |
| Speed | 1000-1800r/min |
| NPSH | 3-10m |
| Type | Size | Frame | Impeller:C2147A05 | Shaft Seal Type | Frame Rating(KW) | Normal Max Speed(r/min) | Max Passage Size(mm) |
| SH | 75 | DD | 5 Closed Type Metal Vans, Diameter:214mm | Gland Packing, Expeller, Mechanical Seal | 110 | 1800 | 25 |
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Ore Transportation
Material: High Chrome Alloy A05
Material Chemical Requirements, Weight%
| Description | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness |
| A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 27 | ≤0.8 | ... | 0.062 | ... | 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC
|
Construction of SH Slurry Pumps:

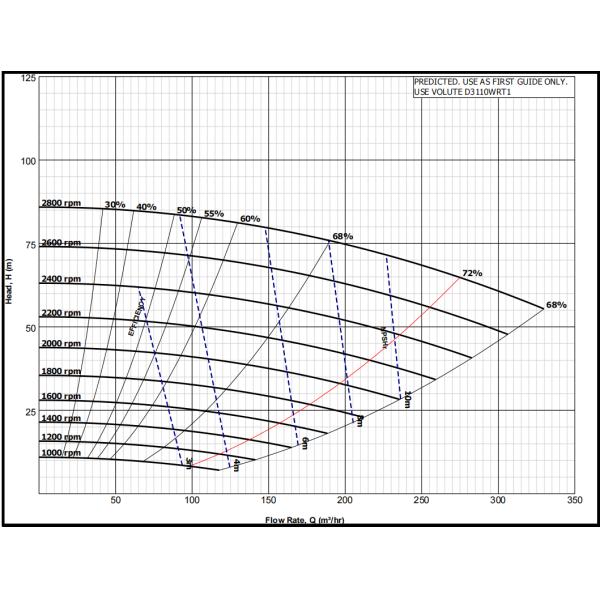

Performance Curve:
